Samtec Inc.United States

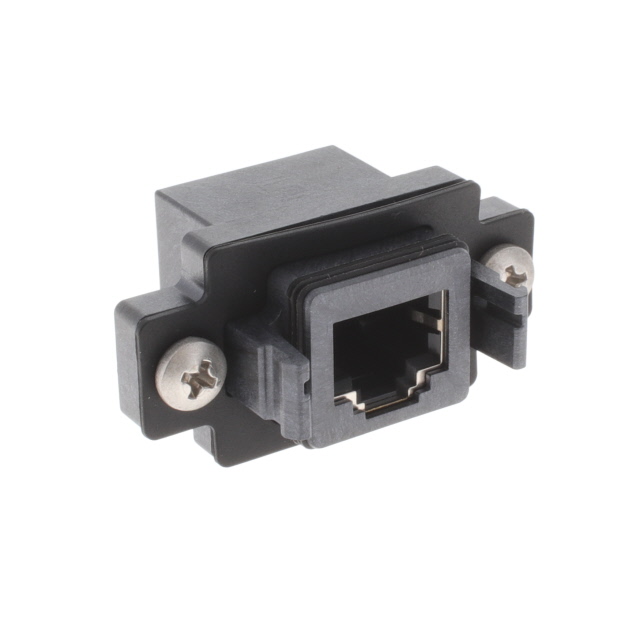

SEAL RECTANGULAR RECEPTACLE ETHE
All alternatives
View full reportTechnical parameters
Key specs
Rows1
GenderFemale
| Environment and package | |
|---|---|
| Mounting Type | Panel Mount, Flange |
| Operating Temperature | -40°C ~ 75°C |
| Package | Tube |
| Other | |
| Base Product Number | RPBE-01 |
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Material | Phosphor Bronze |
| Features | - |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mfr | Samtec Inc. |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | 90° Angle (Right) |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
