MEAN WELL USA Inc.Taiwan, China

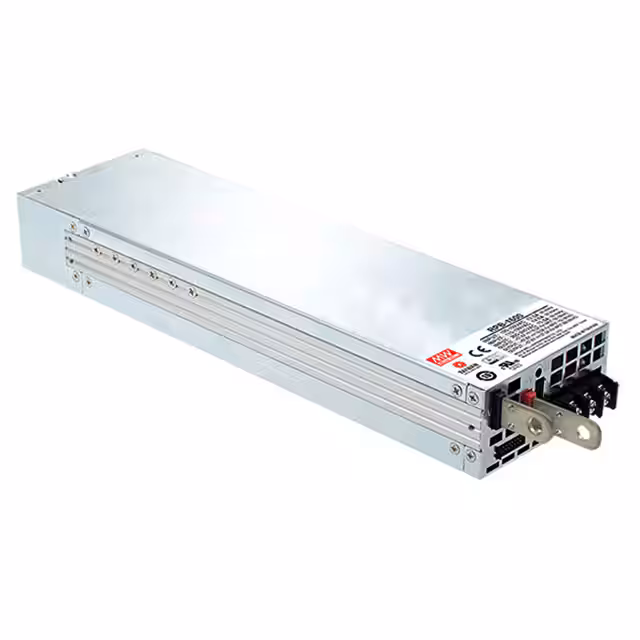

BATT CHARGER ENCLOSED 14.4V 100A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Charge Current - Max | 100A |
| Power - Max | 1600W |
| Voltage - Input | 90 ~ 264VAC, 127 ~ 370VDC |
| Voltage - Nominal | 14.4V |
| Environment and package | |
| Battery Cell Size | 12V |
| Mounting Type | Rack Mount |
| Operating Temperature | -30°C~70°C |
| Package | Box |
| Size / Dimension | 11.81" L x 3.35" W x 1.61" H (300.0mm x 85.0mm x 41.0mm) |
| Other | |
| Approval Agency | CB, CE, cURus, TUV |
| Base Product Number | RPB-1600 |
| Battery Chemistry | Lead Acid, Lithium-Ion |
| Charge Time | - |
| Features | LED Indicator |
| Mfr | MEAN WELL USA Inc. |
| Number of Cells | 1 |
| Product Status | Active |
| Series | RPB-1600 |
| Termination Style | Rectangular Connector |
| Type | Enclosed |
| Weight | 1870 g |
