Schaffner EMC Inc.Switzerland

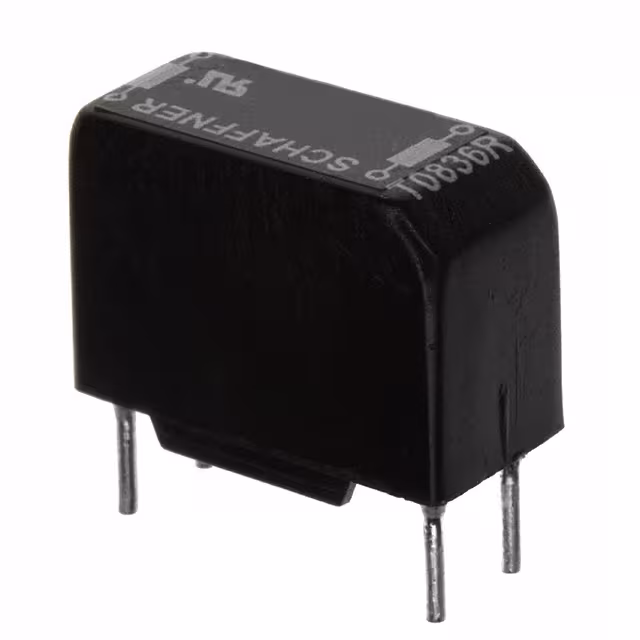

CMC 1.6MH 1.5A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating1.5 ATyp
DC resistance100 mΩTyp
| Power | |
|---|---|
| Current Rating (Max) | 1.5A (Typ) |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 1.6 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.543" (13.80mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Tray |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 0.717" L x 0.346" W (18.20mm x 8.80mm) |
| Other | |
| Approval Agency | UR, VDE |
| DC Resistance (DCR) (Max) | 100mOhm (Typ) |
| Features | - |
| Filter Type | Power Line |
| Mfr | Schaffner EMC Inc. |
| Number of Lines | 2 |
| Product Status | Obsolete |
| Ratings | - |
| Series | RN |
