Schaffner EMC Inc.Switzerland

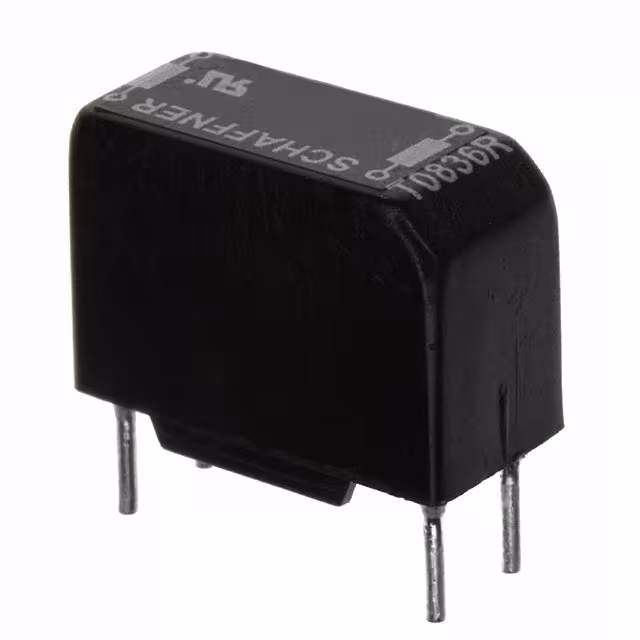

CMC 1.6MH 1.5A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating1.5 AMax
DC resistance94 mΩTyp
| Power | |
|---|---|
| Current Rating (Max) | 1.5A |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 1.6 mH @ 10 kHz |
| Environment and package | |
| Height (Max) | 0.543" (13.80mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~100°C |
| Package | Tube |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 0.717" L x 0.346" W (18.20mm x 8.80mm) |
| Other | |
| Approval Agency | ENEC, UR, VDE |
| Base Product Number | RN202 |
| DC Resistance (DCR) (Max) | 94mOhm (Typ) |
| Features | - |
| Filter Type | Power Line |
| Mfr | Schaffner EMC Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | RN |
