Schaffner EMC Inc.Switzerland

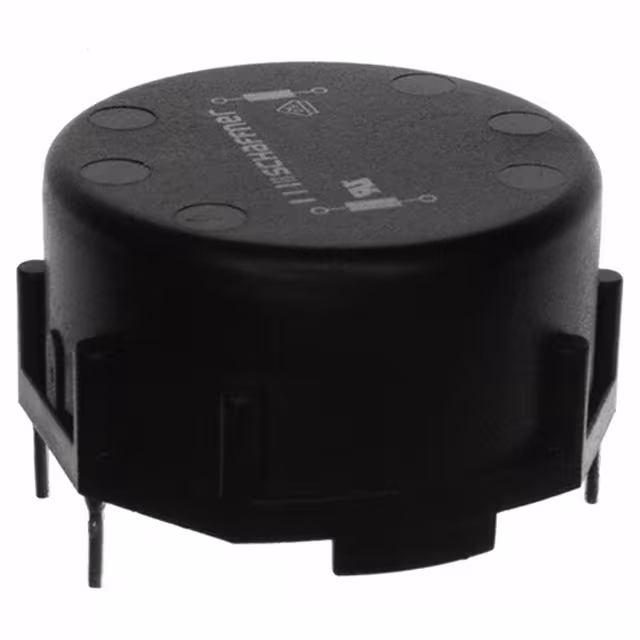

CMC 2.7MH 8A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating8 ATyp
DC resistance22 mΩTyp
| Power | |
|---|---|
| Current Rating (Max) | 8A (Typ) |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 2.7 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.996" (25.30mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Tray |
| Package / Case | Horizontal, 4 PC Pin |
| Size / Dimension | 1.693" L x 1.646" W (43.00mm x 41.80mm) |
| Other | |
| Approval Agency | UR, VDE |
| DC Resistance (DCR) (Max) | 22mOhm (Typ) |
| Features | - |
| Filter Type | Power Line |
| Mfr | Schaffner EMC Inc. |
| Number of Lines | 2 |
| Product Status | Obsolete |
| Ratings | - |
| Series | RN |
