Standex-Meder ElectronicsUnited States

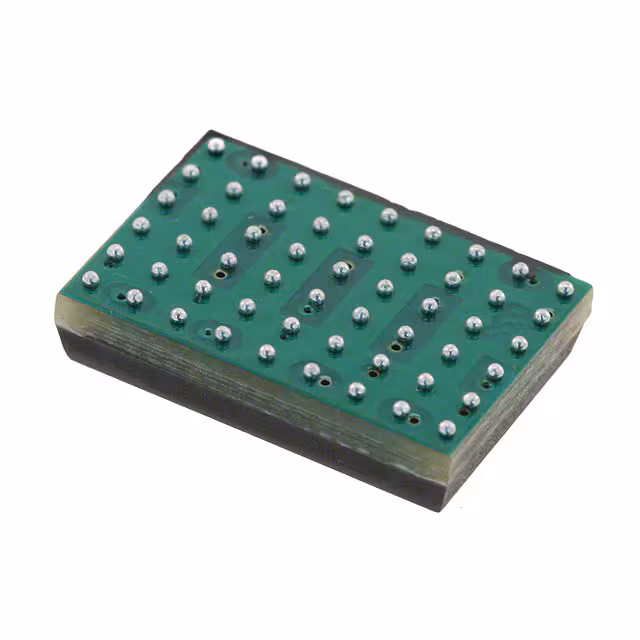

RELAY REED 4PST 300MA 5V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Current | 27 mA |
| Coil Voltage | 5VDC |
| Contact Rating (Current) | 300 mA |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Switching Voltage | 180VAC, 180VDC - Max |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C~85°C |
| Package | Tray |
| Other | |
| Coil Resistance | 185 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) x 4 |
| Contact Material | - |
| Features | - |
| Mfr | Standex-Meder Electronics |
| Operate Time | 0.6 ms |
| Product Status | Obsolete |
| Release Time | 0.05 ms |
| Seal Rating | - |
| Series | RM |
| Termination Style | BGA |
