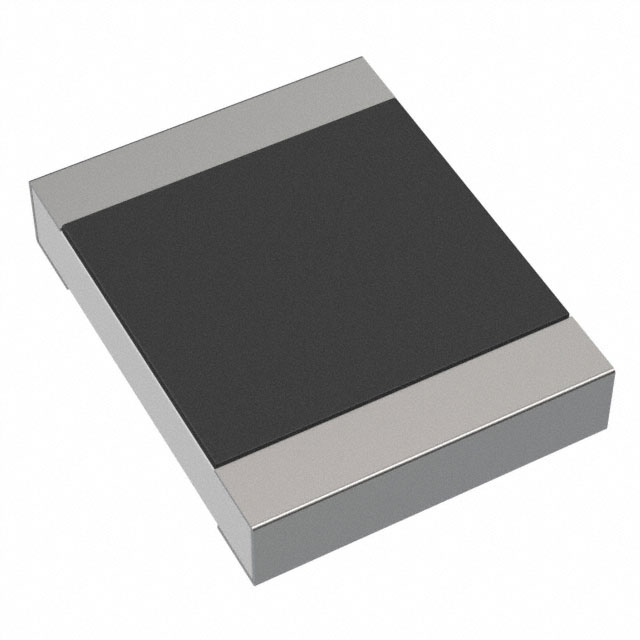

RK73B2ETTDD102J
Chip Resistor - Surface MountRESISTOR
All alternatives
View full reportTechnical parameters
Key specs
Resistance1 kΩ
Tolerance5 %
Power500 mW
Temperature coefficient200 ppm/°C
| Power | |
|---|---|
| Power (Watts) | 0.5W, 1/2W |
| Environment and package | |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.102" W (3.20mm x 2.60mm) |
| Supplier Device Package | 1210 |
| Temperature Coefficient | ±200ppm/°C |
| Other | |
| Composition | Thick Film |
| Failure Rate | - |
| Features | Automotive AEC-Q200 |
| Mfr | KOA Speer Electronics, Inc. |
| Number of Terminations | 2 |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Ratings | AEC-Q200 |
| Resistance | 1 kOhms |
| Series | RK73B |
| Tolerance | ±5% |
Documents
No documents are linked to this part yet.
