Recom PowerAustria

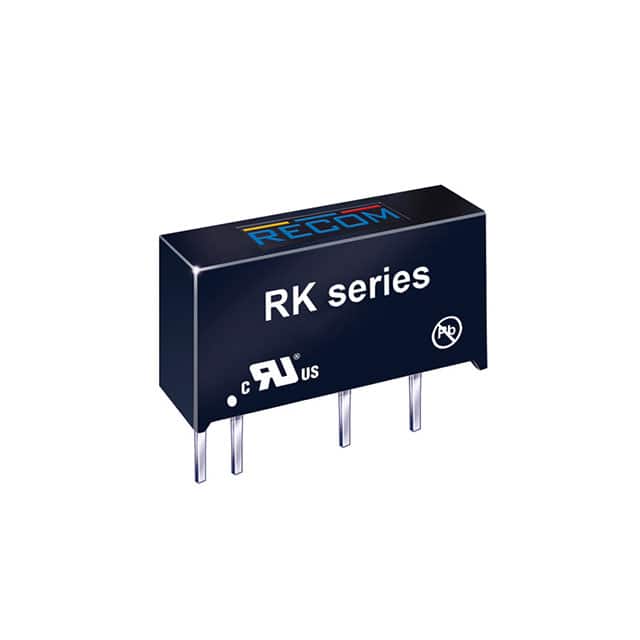

DC DC CONVERTER 9V 1W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 5.5 V
Output voltage9 V
Output current111 mAMax
Power1 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 111mA |
| Power (Watts) | 1 W |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Base Product Number | RK-0509 |
| Control Features | - |
| Efficiency | 84% |
| Features | SCP |
| Mfr | Recom Power |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | ECONOLINE RK (1W) |
| Type | Isolated Module |
