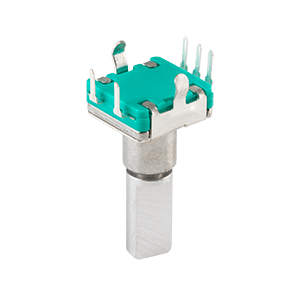

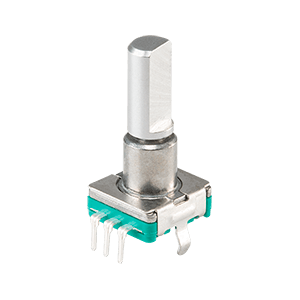

12 mm, 5 Vdc, 15 PPR, Through Hole, Mechanical Panel Mount Encoder
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Input Voltage (Vdc) | 5 |
| AC and DC characteristics | |
| Resolution (PPR) | 15 |
| Environment and package | |
| Base Size (mm) | 11.7 x 12 |
| Operating Temp. (°C) | -40 ~ 85 |
| Package Type | Panel Mount |
| Other | |
| Detent | Yes |
| Encoder Type | Incremental |
| Open Center | No |
| Orientation | Vertical |
| Output Type | Single Ended Quadrature |
| Push Switch | Yes |
| Series | RIC11 |
| Shaft Length (mm) | 19.5 |
| Termination | Through Hole |
