Vishay General Semiconductor - Diodes DivisionUnited States

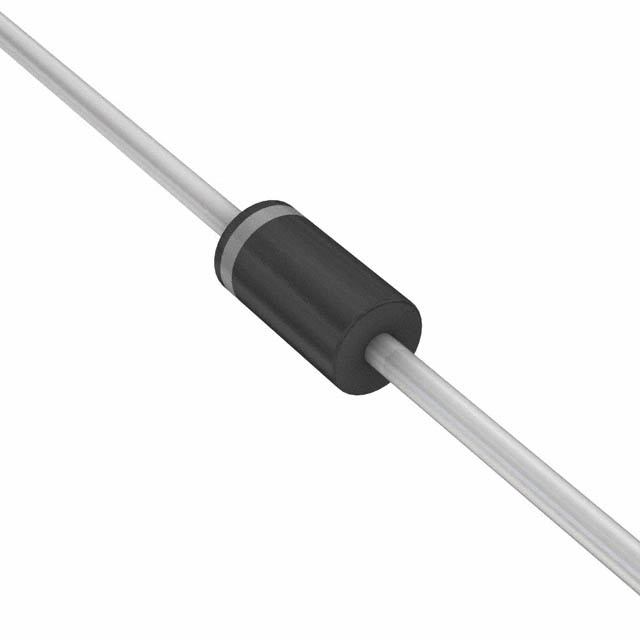

RGP10GEHE3/54
Single DiodesDIODE GEN PURP 400V 1A DO204AL
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage400 V
Average rectified current1 A
Forward voltage1.3 VMax · 1 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Other | |
| Base Product Number | RGP10 |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Reverse Recovery Time (trr) | 150 ns |
| Series | SUPERECTIFIER® |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
