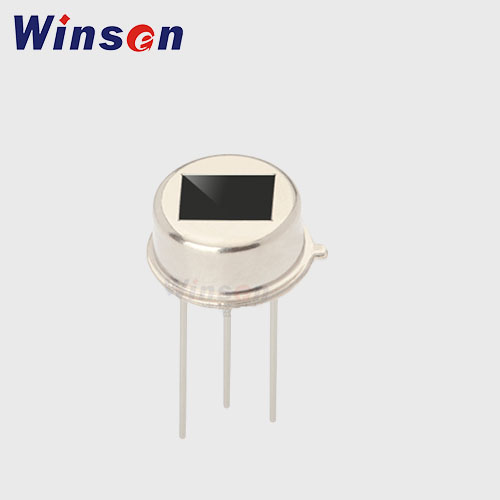

RD-623 Pyroelectric Infrared Sensor
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | <25uA @Rs=47K |
| Source voltage | 0.3～1.1V |
| Working voltage | 3～15V |
| AC and DC characteristics | |
| Noise peak[Vp-p] | <70mV |
| Environment and package | |
| Size | TO-5 9.1x4.5mm |
| Storage temperature | -40～80ºC |
| Window Size | 3.8×5mm |
| Working temperature | -30～70ºC |
| Other | |
| Characteristics | analog output, large detection range, high sensitivity, anti-interference, and excellent signal to noise ratio. |
| Detection principle | pyroelectric effect |
| Detection rate (D*) | 1.4 ×108 cmHz1/2/W |
| Infrared receiving electrode | 2×1mm, 2 sensitive elements |
| Model | RD-623 |
| Model No. | RD-623 |
| Output balance degree | <10% |
| Output signal peak[Vp-p] | 3500mV |
| Receiving Wave length | 5～14µm |
| Receiving wavelength | 5-14um |
| Sensitivity | 3200V/W |
| Standard encapsulation | TO-5 |
| Target | human body induction |
| Transmittance | >75% |
| Working conditions | Working voltage:3-15V |
