Radiocrafts ASNorway

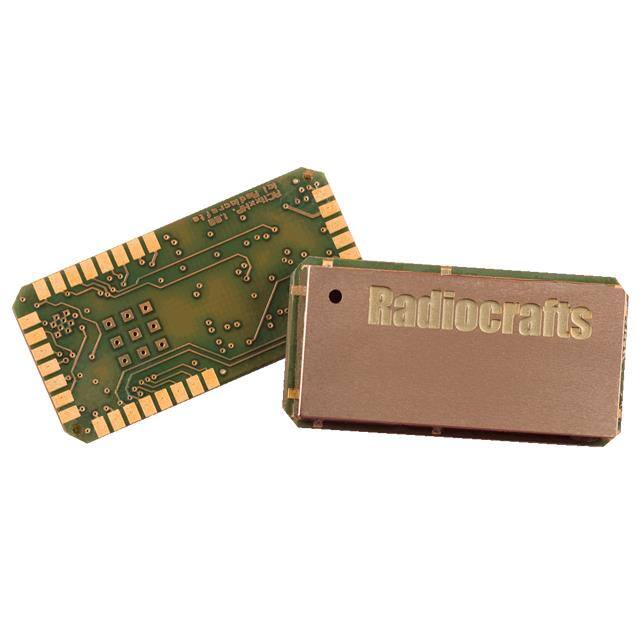

HIGH POWER MODULE FOR RIIM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 12.5mA |
| Current - Transmitting | 350mA |
| Power - Output | 27dBm |
| Voltage - Supply | 2.3V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 902MHz ~ 928MHz |
| Environment and package | |
| Memory Size | 32kB Flash, 8kB RAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 42-SMD Module |
| Other | |
| Antenna Type | Antenna Not Included |
| Base Product Number | RC1892 |
| Data Rate | 50kbps |
| Mfr | Radiocrafts AS |
| Modulation | - |
| Product Status | Active |
| Protocol | - |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -111dBm |
| Serial Interfaces | ADC, GPIO, I²C, SPI, UART |
| Series | - |
| Utilized IC / Part | - |
Documents
No documents are linked to this part yet.
