RES SMD 68 OHM 5% 1/4W J LEAD
All alternatives
View full reportTechnical parameters
Key specs
Resistance68 Ω
Tolerance5 %
Power250 mW
Temperature coefficient400 ppm/°C
| Power | |
|---|---|
| Power (Watts) | 0.25W, 1/4W |
| Environment and package | |
| Height - Seated (Max) | 0.164" (4.17mm) |
| Operating Temperature | -55°C~150°C |
| Package | Bulk |

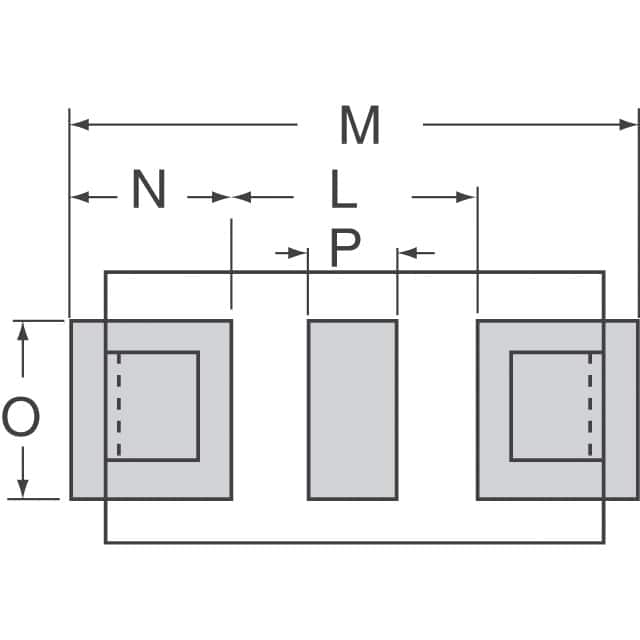

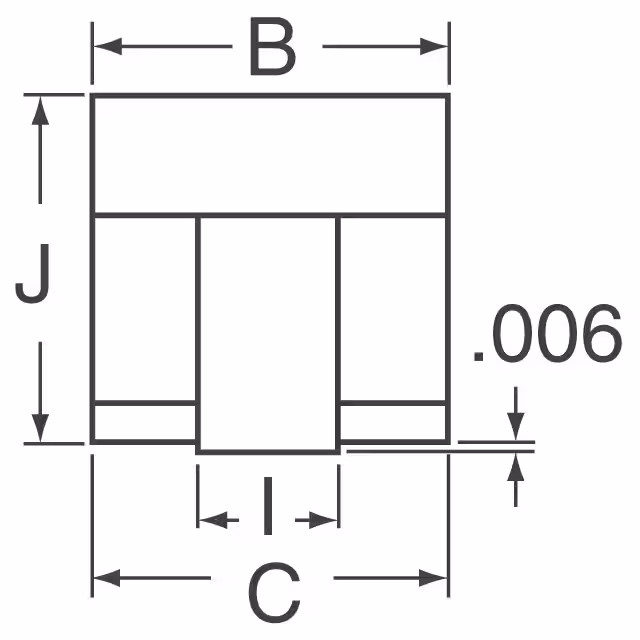

| Package / Case | 3916 J-Lead |
| Size / Dimension | 0.394" L x 0.159" W (10.01mm x 4.04mm) |
| Supplier Device Package | SMD J-Lead, Pedestal |
| Temperature Coefficient | ±400ppm/°C |
| Other | |
| Composition | Carbon Composition |
| Failure Rate | - |
| Features | Pulse Withstanding |
| Mfr | Ohmite |
| Number of Terminations | 2 |
| Product Status | Active |
| Resistance | 68 Ohms |
| Series | RC |
| Tolerance | ±5% |
