View full reportTechnical parameters
Key specs
Reverse voltage40 V
Average rectified current2 A
Forward voltage500 mVMax · 2 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 2A |
| Current - Reverse Leakage @ Vr | 1 mA @ 40 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125°C (Max) |

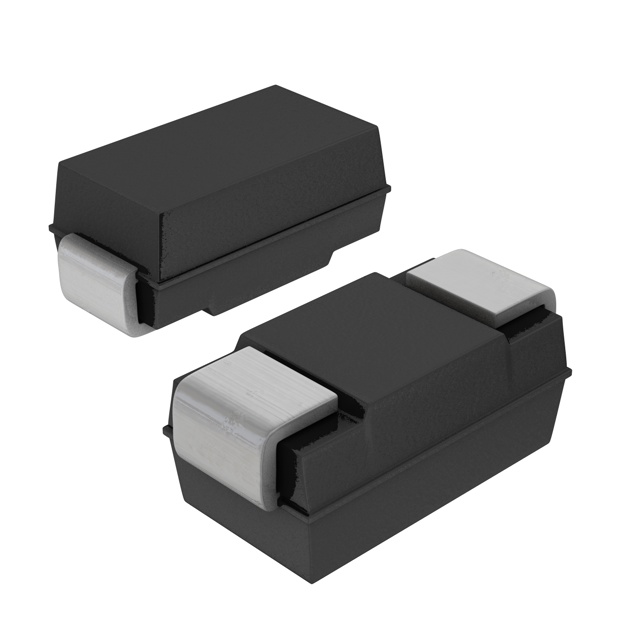

| Package / Case | DO-214AC, SMA |
| Supplier Device Package | PMDS |
| Other | |
| Base Product Number | RB060 |
| Capacitance @ Vr, F | - |
| Mfr | Rohm Semiconductor |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Not For New Designs |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
