Recom PowerAustria

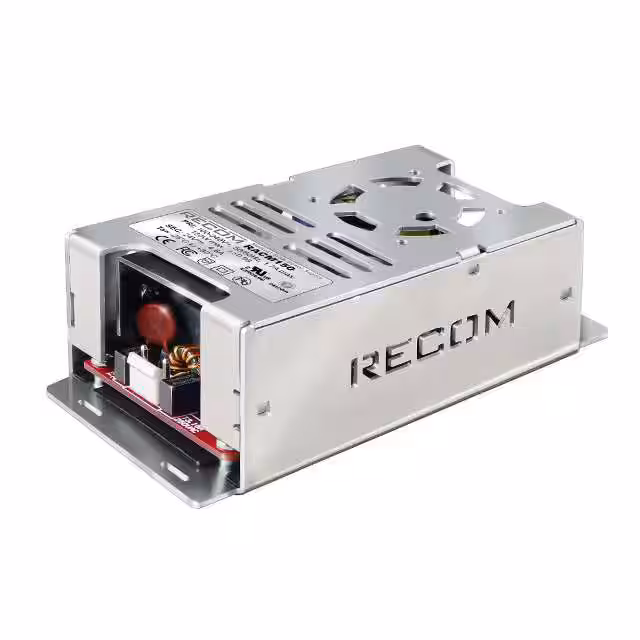

AC/DC CONVERTER 12V 150W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage12 V
Output current12.5 AMax
Power150 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 12.5 A |
| Power (Watts) | 150W |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C~80°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.60" L x 2.44" W x 1.94" H (116.8mm x 62.0mm x 49.2mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CE, cURus |
| Base Product Number | RACM150 |
| Efficiency | 91% |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mfr | Recom Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | MEDLINE RACM150 (150W) |
| Type | Enclosed |
