Recom PowerAustria

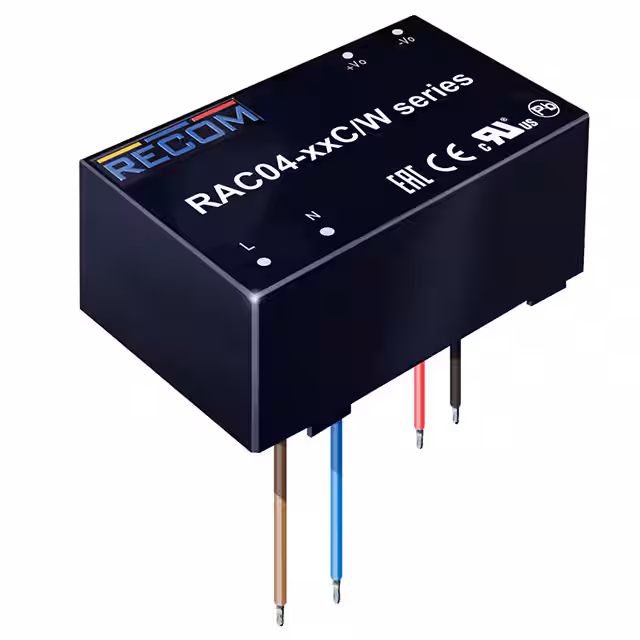

AC/DC CONVERTER 15V 4W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage80 ~ 264 V
Output voltage15 V
Output current267 mAMax
Power4 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 267 mA |
| Power (Watts) | 4W |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C~85°C(WithDerating) |
| Package | Box |
| Size / Dimension | 1.49" L x 0.94" W x 0.65" H (37.8mm x 23.9mm x 16.4mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus |
| Efficiency | 77% |
| Features | DC Input Capable, Remote Sense, Universal Input |
| Mfr | Recom Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | POWERLINE RAC04-SC/W (4W) |
| Type | Enclosed |
Documents
No documents are linked to this part yet.
