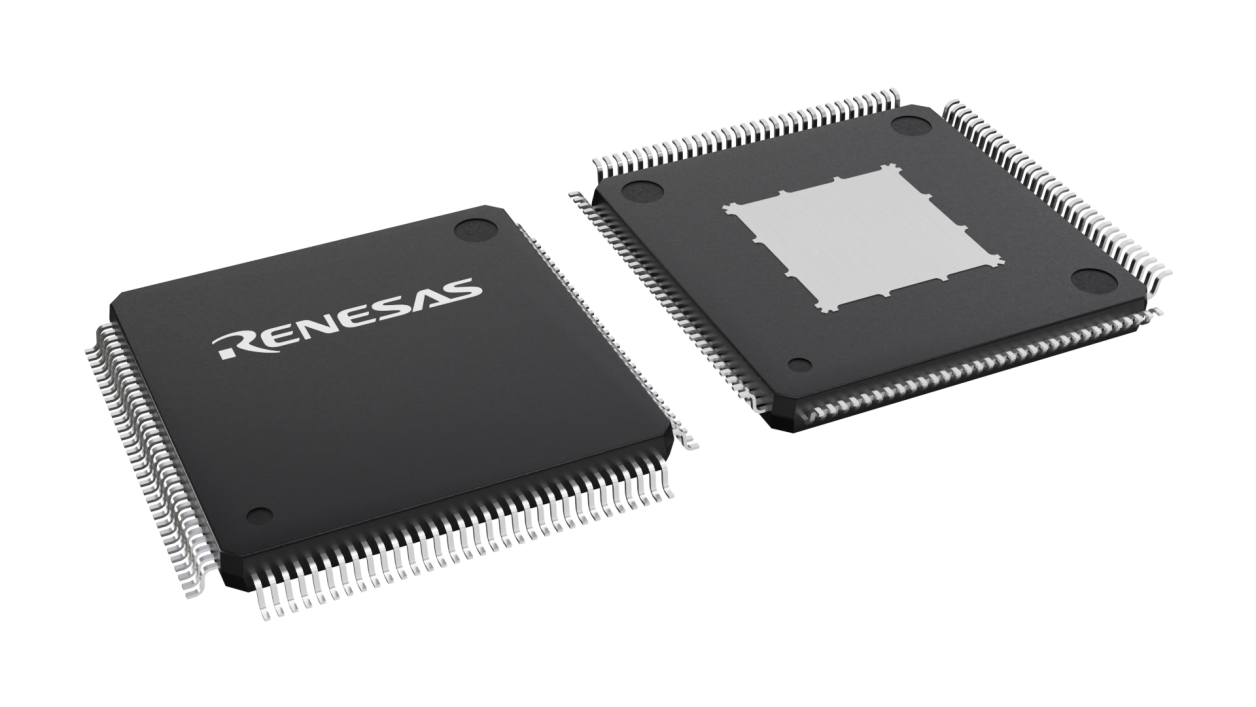

LCD Video Processor with Dual Channel LVDS Open LDI Panel Interface and a Separate MIPI-CSI2 Output
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| ADC Input Frequency (MHz) | 27 |
| Output Resolution (Max) | 1080p (1920x1080) |
| Environment and package | |
| Moisture Sensitivity Level (MSL) | 3 |
| Pkg. Dimensions (mm) | 14.0 x 14.0 x 1.40 |
| Qualification Level | AEC-Q100 Grade 2 |
| Temp. Range (°C) | -40 to +105°C |
| Other | |
| Analog RGB Input | No |
| Carrier Type | Tray |
| CCFL/LED Controller | No |
| Color Enhancement | Yes |
| Comb Filter | 2D |
| Country of Assembly | TAIWAN |
| Country of Wafer Fabrication | TAIWAN |
| CVBS Input | Yes (single ended or differential) |
| De-Interlacer | 2D |
| Digital RGB/Y CbCr Input | 24 bit + 8 bit |
| Dual View Output | No |
| External OSD | No |
| ISO 26262 (Functional Safety) | QM |
| Lead Count (#) | 128 |
| Length (mm) | 14 |
| LVDS Input | Yes (2CH) |
| LVDS Output | Yes (2CH) |
| MCU/MPU | External |
| Memory Support | No |
| MIPI-CSI2 input | Yes |
| MOQ | 90 |
| OSD Colors | 16 Colors / 16-bit Pallette |
| OSD Font RAM | 512 |
| OSD Type | Font / SPI bitmap |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Pb (Lead) Free | Yes |
| PIP | No |
| Pitch (mm) | 0.4 |
| Pkg. Type | LQFP |
| SCART Input | No |
| Secondary Output | MIPI-CSI2 |
| S-Video Input | No |
| TCON Output | No |
| Thickness (mm) | 1.4 |
| Touch-screen Controller | No |
| TTL Output | No |
| Width (mm) | 14 |
| YPbPr Input | No |
