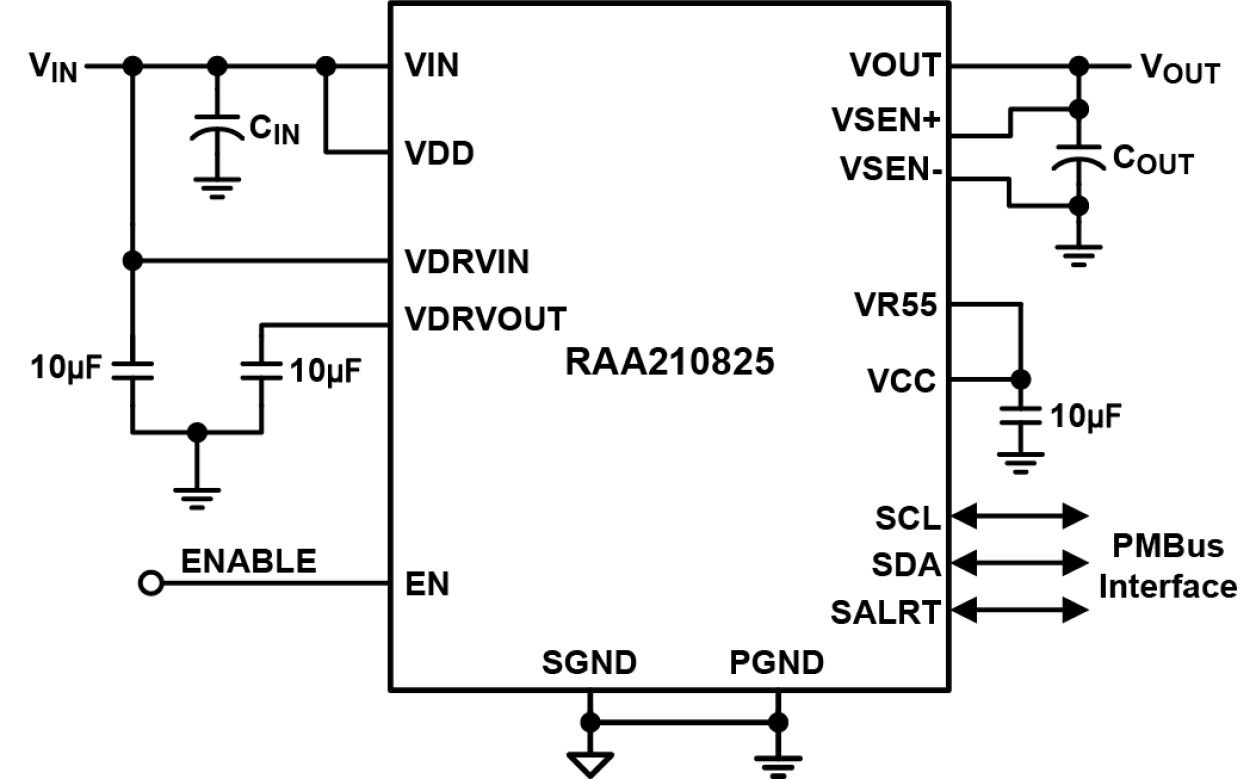

Pin-Configurable 25A DC/DC Power Module with PMBus Interface
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Sharing | No |
| Input Voltage (Max) (V) | 14 |
| Input Voltage (Min) (V) | 4.5 |
| Output Current (Max) [Rail 1] (A) | 25 |
| Output Voltage (Max) (V) | 5 |
| Output Voltage (Min) (V) | 0.6 |
| Quiescent Current | 40 mA |
| AC and DC characteristics | |
| Switching Frequency (KHz) | 1.067 - 1.067 |
| Switching Frequency Range (Typical) (kHz) | 296 - 1067 |
| Environment and package | |
| Moisture Sensitivity Level (MSL) | 3 |
| Pkg. Dimensions (mm) | 17.0 x 19.0 x 3.55 |
| Qualification Level | Standard |
| Other | |
| Carrier Type | Reel |
| Control Type | Digital |
| Digital Bus | Yes |
| Lead Count (#) | 41 |
| Length (mm) | 17 |
| MOQ | 100 |
| Parametric Category | Digital-Interface Power Modules |
| Pb Free Category | Nickel/Palladium/Gold-e4 |
| Pb (Lead) Free | Exempt |
| Peak Efficiency (%) | 96 |
| Pitch (mm) | 1 |
| Pkg. Type | Module |
| POR | Yes |
| SYNCH Capability | Yes |
| Thickness (mm) | 3.55 |
| Width (mm) | 19 |
