MCU RA4 ARM CM33 100MHZ 512K/128
All alternatives
View full reportTechnical parameters
Key specs
CoreCORTEX-M33
Core size32 bit
Speed100 MHzMax
Flash512 kB
RAM128 kB
I/O count78
Supply voltage2.7 ~ 3.6 V
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Environment and package | |
| Core Size | 32-Bit Single-Core |
| EEPROM Size | 8K x 8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C(TA) |
| Package | Tray |

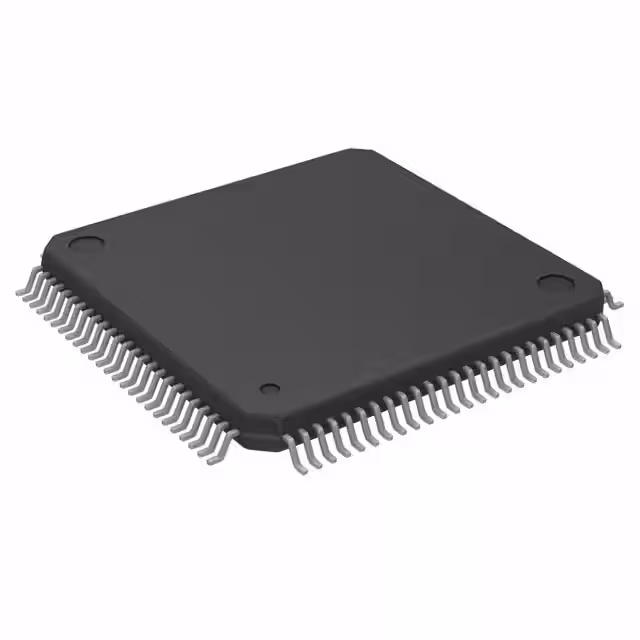

| Package / Case | 100-LQFP |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 128K x 8 |
| Supplier Device Package | 100-LFQFP (14x14) |
| Other | |
| Base Product Number | R7FA4M2 |
| Connectivity | CANbus, I²C, QSPI, SCI, SPI, UART/USART, USB |
| Core Processor | ARM® Cortex®-M33 |
| Data Converters | A/D 13x12b SAR; D/A 2x12b |
| Mfr | Renesas Electronics America Inc |
| Number of I/O | 78 |
| Oscillator Type | Internal |
| Peripherals | AES, DMA, LVD, POR, PWM, Temp Sensor, WDT |
| Product Status | Active |
| Series | RA4M2 |
| Speed | 100MHz |
