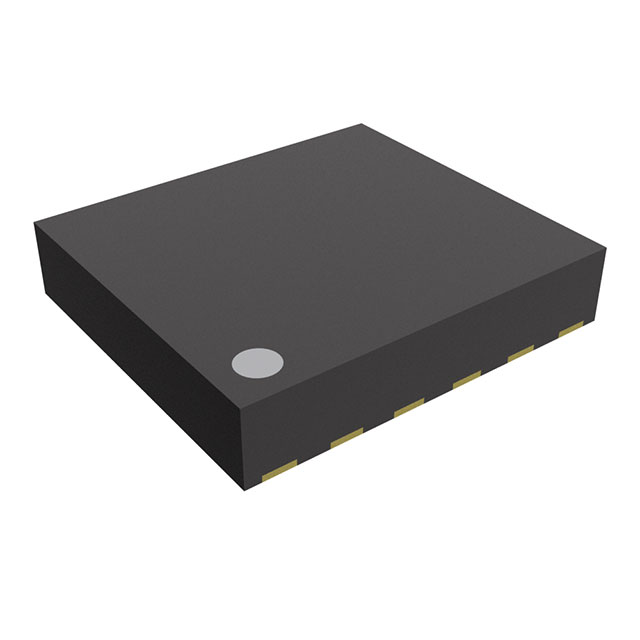

IC REG BUCK ADJ 1.2A 10DFN
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 30 V
Output voltage800 mV ~ 15 V
Output current1.2 AMax
Switching frequency1.25 MHz
| Power | |
|---|---|
| Current - Output | 1.2A |
| Voltage - Input (Max) | 30V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0.8V |
| AC and DC characteristics | |
| Frequency - Switching | 1.25MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | DFN(PL)2527-10 |
| Other | |
| Base Product Number | R1240 |
| Function | Step-Down |
| Mfr | Nisshinbo Micro Devices Inc. |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | R1240x |
| Synchronous Rectifier | No |
| Topology | Buck |
