Johanson Technology Inc.United States
QSCP251Q390K1GV001T

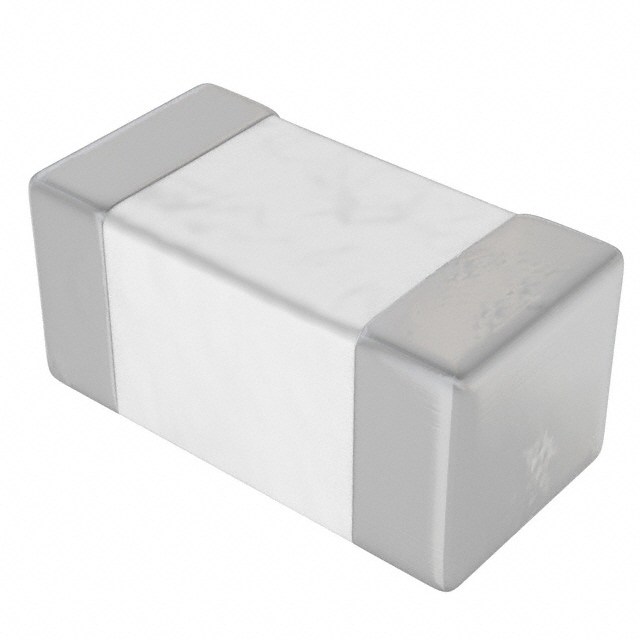

Ceramic CapacitorsCAP CER 39PF 250V NP0 0603
All alternatives
View full reportTechnical parameters
Key specs
Capacitance39 pF
Rated voltage250 V
Tolerance10 %
DielectricC0G (NP0)
| Power | |
|---|---|
| Voltage - Rated | 250V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.062" L x 0.032" W (1.57mm x 0.81mm) |
| Temperature Coefficient | C0G, NP0 |
| Other | |
| Applications | RF, Microwave, High Frequency |
| Capacitance | 39 pF |
| Features | High Q, Low Loss, Ultra Low ESR |
| Lead Spacing | - |
| Lead Style | - |
| Mfr | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Ratings | - |
| Series | S |
| Thickness (Max) | 0.035" (0.89mm) |
| Tolerance | ±10% |
Documents
No documents are linked to this part yet.
