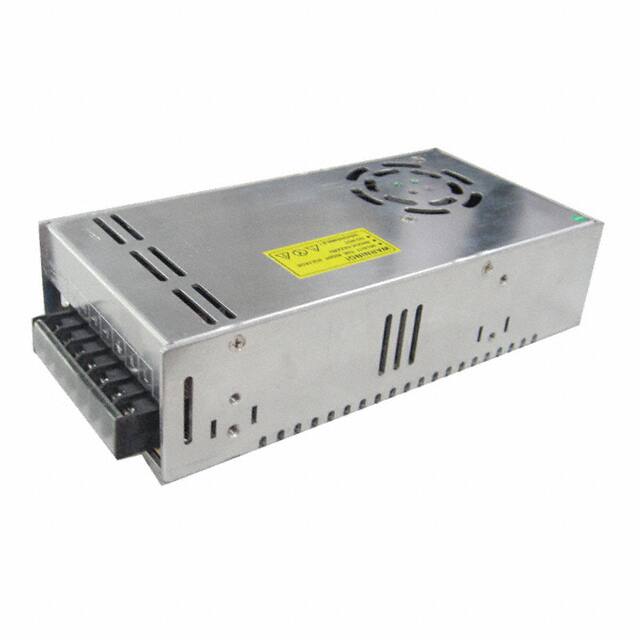

AC/DC CONVERTER 5V 200W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage5 V
Output current40 AMax
Power200 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 40 A |
| Power (Watts) | 200W |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C~60°C |
| Package | Box |
| Size / Dimension | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | QPDF-200 |
| Efficiency | 83% |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mfr | Qualtek |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | QPDF-200 (200W) |
| Type | Enclosed |
