QT Brightek (QTB)United States

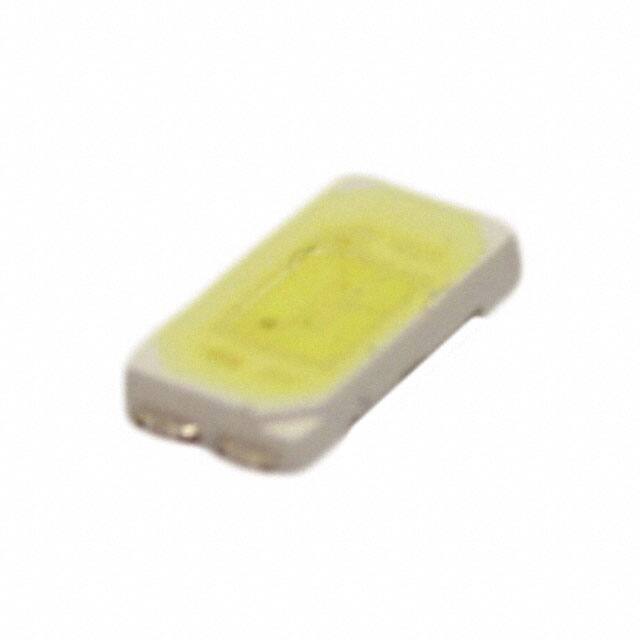

LED COOL WHITE 6020K 80CRI 4SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 180mA |
| Current - Test | 150mA |
| Flux @ 25°C, Current - Test | 50lm (Typ) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 101 lm/W |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Environment and package | |
| Height - Seated (Max) | 0.038" (0.97mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 4-SMD, Flat Lead Exposed Pad |
| Size / Dimension | 0.209" L x 0.118" W (5.30mm x 3.00mm) |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | - |
| Other | |
| CCT (K) | 6020K (5300K ~ 7050K) |
| Color | White, Cool |
| CRI (Color Rendering Index) | 80 |
| Mfr | QT Brightek (QTB) |
| Product Status | Obsolete |
| Series | QBHP687 |
| Viewing Angle | - |
