QT Brightek (QTB)United States

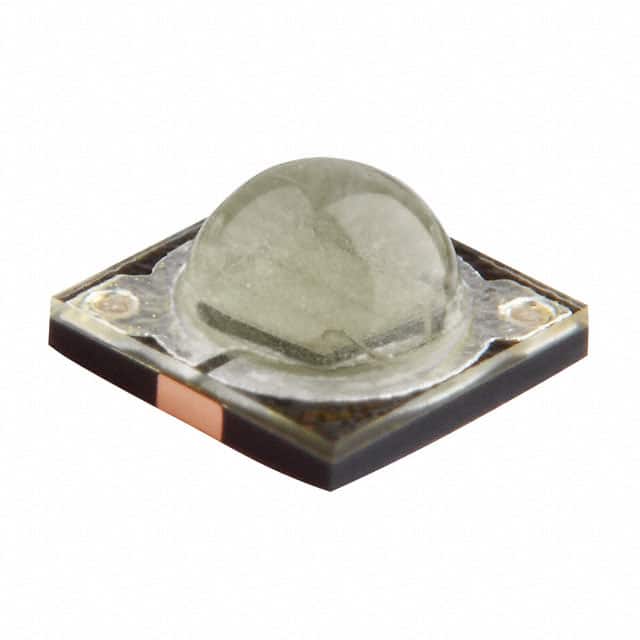

LED WARM WHITE 3000K 2SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 700mA |
| Current - Test | 350mA |
| Flux @ 25°C, Current - Test | 90lm (Typ) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 76 lm/W |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.142" L x 0.142" W (3.60mm x 3.60mm) |
| Supplier Device Package | 3636 |
| Thermal Resistance of Package | 4°C/W |
| Other | |
| Base Product Number | QBHP684 |
| CCT (K) | 3000K (2870K ~ 3220K) |
| Color | White, Warm |
| CRI (Color Rendering Index) | - |
| Mfr | QT Brightek (QTB) |
| Product Status | Obsolete |
| Series | QBHP684UE |
| Viewing Angle | 130° |
