Littelfuse Inc.United States
TRIAC ALTERNISTOR 600V 8A TO252
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 80A, 85A |
| Current - On State (It (RMS)) (Max) | 8 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tube |

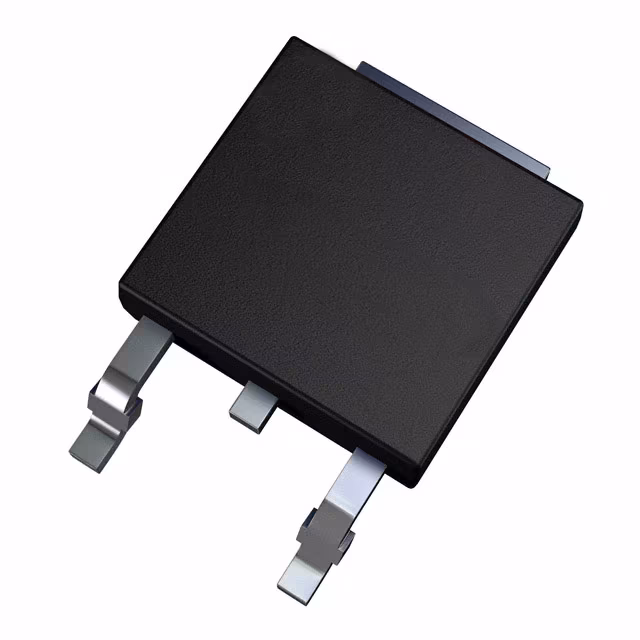

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252, (D-Pak) |
| Other | |
| Base Product Number | Q6008 |
| Configuration | Single |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | - |
| Triac Type | Alternistor - Snubberless |
Documents
No documents are linked to this part yet.
