QT Brightek (QTB)United States

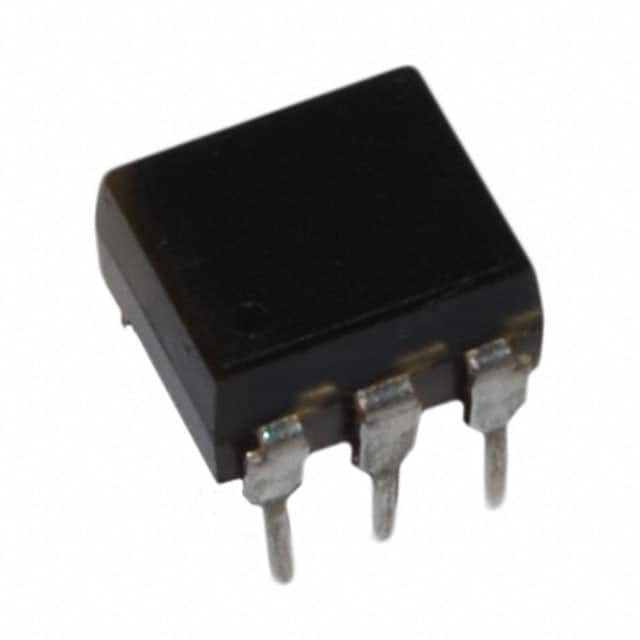

OPTOISOLATOR 5KV TRIAC 6DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Hold (Ih) | 280µA (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~100°C |
| Package | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Other | |
| Approval Agency | UR, VDE |
| Base Product Number | Q30 |
| Mfr | QT Brightek (QTB) |
| Output Type | Triac |
| Product Status | Active |
| Series | Q306X |
| Static dV/dt (Min) | 1kV/µs |
| Turn On Time | - |
| Zero Crossing Circuit | Yes |
