APEM Inc.France

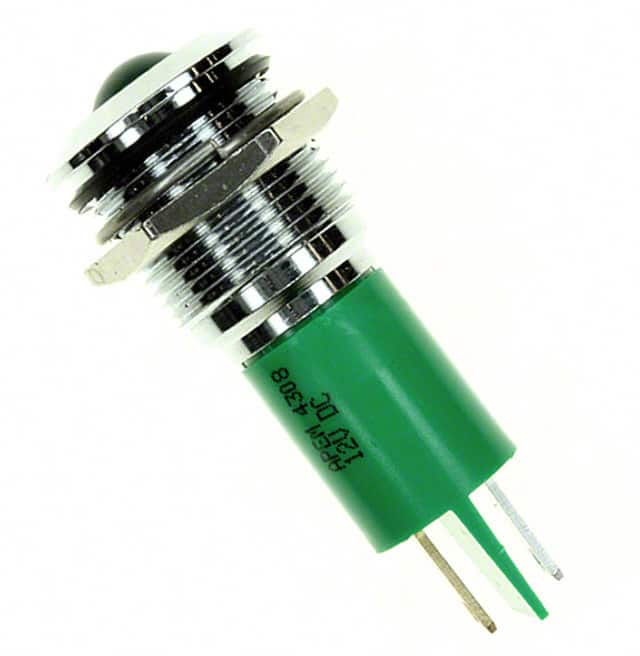

INDICATOR 12V 19MM PROMINENT GRN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 20mA |
| Voltage | 12V |
| Environment and package | |
| Lens Size | 10.00mm Dia |
| Package | Bulk |
| Panel Cutout Dimensions | 0.75" (19.05mm) |
| Other | |
| Base Product Number | Q19P1CXXG |
| Features | - |
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Mfr | APEM Inc. |
| Millicandela Rating | 60mcd |
| Panel Cutout Shape | Round |
| Product Status | Active |
| Ratings | DC |
| Series | Q19 |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 60° |
| Wavelength - Peak | - |
