PW_1D-1D
KüblerGermany

PW_1D-1D

Active

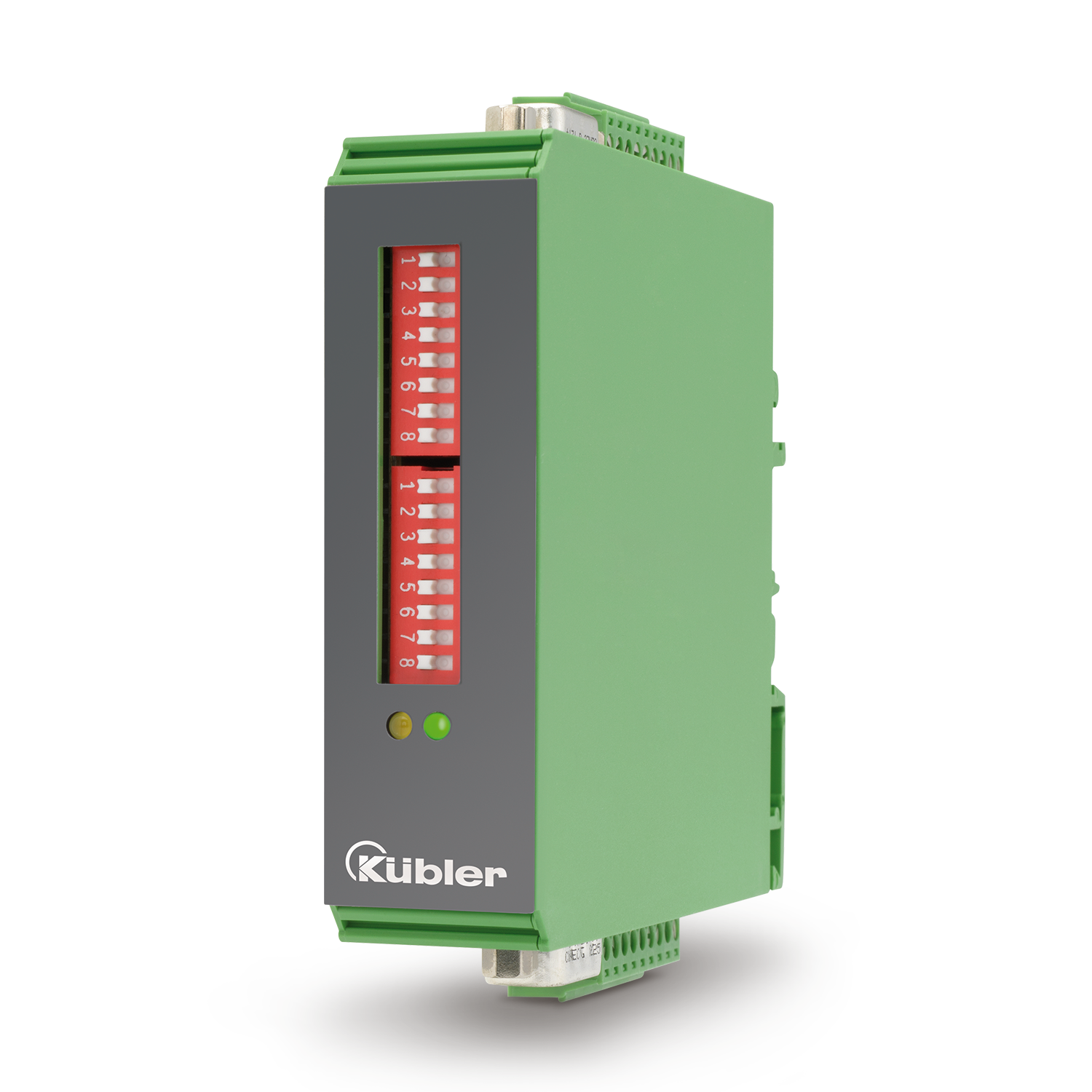

Level converter for separation and conversion of digital signals. TTL / RS422, HTL/Push-Pull

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power supply5...30 V DC
Environment and package
Dimension22 mm x 102 mm x 102 mm
Working temperature0 °C ... 45 °C
Other
Connection typesScrew terminals Sub-D connector
Input interfacesHTL TTL / RS422
Inputs codingA, B, 0 A, A|, B, B|, 0, 0|
Output interfacesHTL TTL / RS422
Outputs codingA, B, 0 A, A|, B, B|, 0, 0|
Protection levelIP20
PW 1D-1D PDF ∼ 351,9 KB | 09.2025DE EN FR
PW 1D-1D PDF ∼ 746,3 KB | 09.2025DE EN FR

Documents

Package DrawingPackage Drawing · 1.1 MB · 2026-09-24OtherOther · 746.5 KB · 2026-09-24OtherOther · 746.3 KB · 2026-09-24OtherOther · 745.5 KB · 2026-09-24OtherOther · 354.7 KB · 2026-09-24OtherOther · 354.3 KB · 2026-09-24OtherOther · 353.3 KB · 2026-09-24OtherOther · 351.9 KB · 2026-09-24OtherOther · 214.7 KB · 2026-09-24
