Panduit CorpUnited States

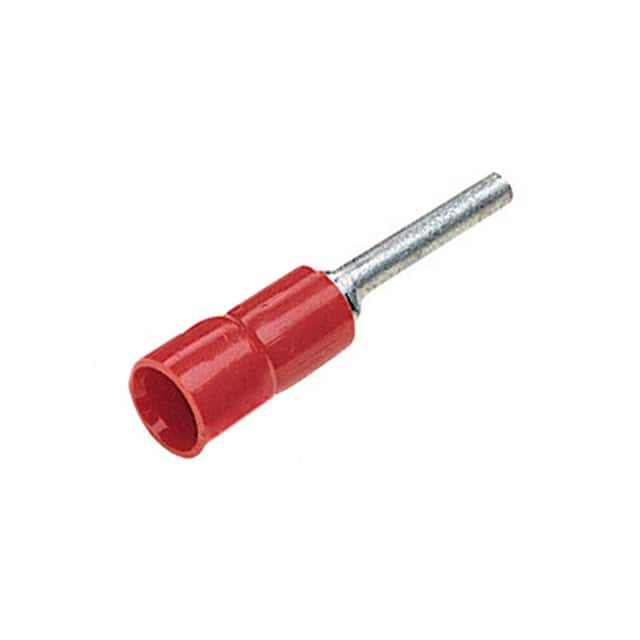

CONN WIRE PIN TERM 18-22AWG
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Base Product Number | PV18 |
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Features | Butted Seam |
| Insulation | Insulated |
| Insulation Diameter | 0.150" (3.81mm) |
| Length - Overall | 0.890" (22.61mm) |
| Length - Pin | 0.394" (10.00mm) |
| Length - Termination | - |
| Material - Insulation | Vinyl |
| Mfr | Panduit Corp |
| Pin Diameter | Circular - 0.080" (2.03mm) Dia |
| Product Status | Active |
| Series | - |
| Termination | Crimp |
| Wire Gauge | 18-22 AWG |
