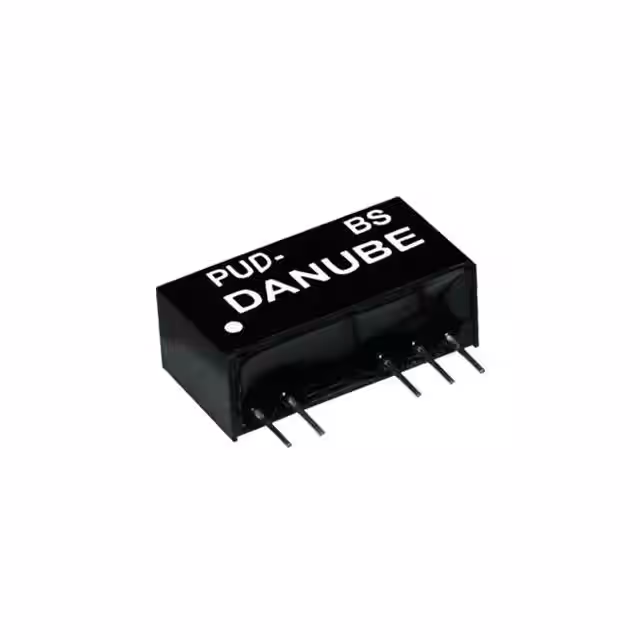

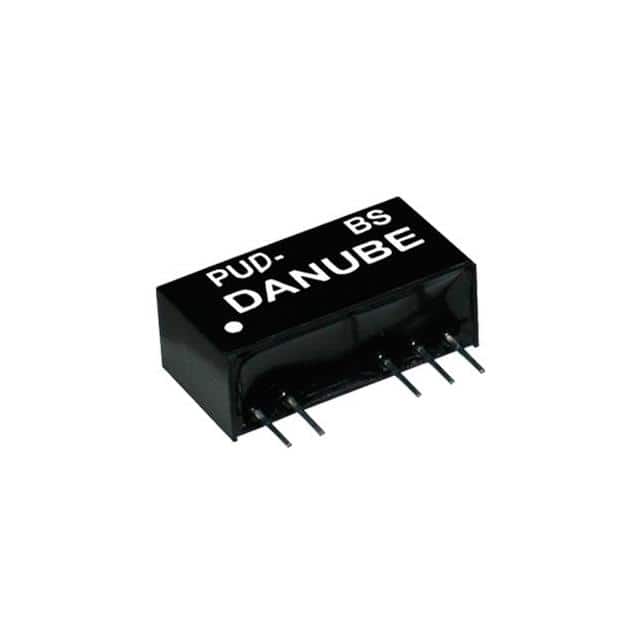

DC/DC CONVERTER 5V INPUT, +/-15V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 5.5 V
Output voltage15 V
Output current34 mAMax
Power1 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 34mA, 34mA |
| Power (Watts) | 1 W |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.5mm x 10.2mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, FCC |
| Control Features | - |
| Efficiency | 80% |
| Features | - |
| Mfr | Diwell Electronics |
| Number of Outputs | 2 |
| Product Status | Active |
| Series | PU-S (1W) |
| Standard Number | - |
| Type | Isolated Module |
