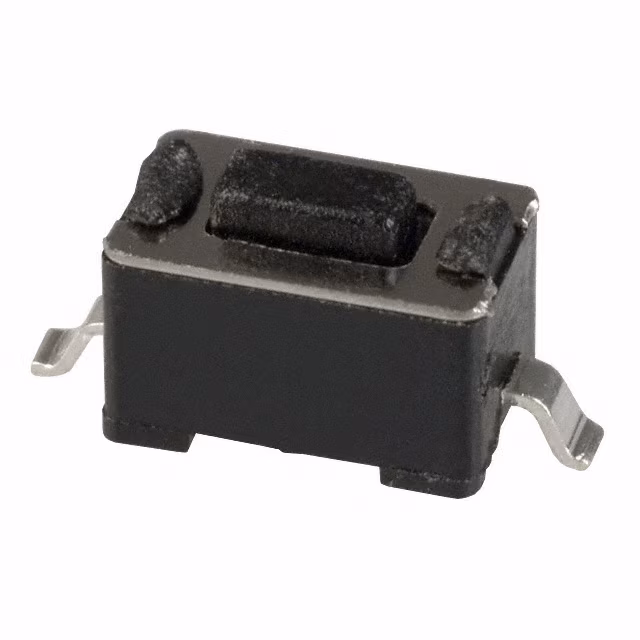

SWITCH TACTILE SPST-NO 0.05A 12V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 12VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | 4.30mm |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~60°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Orientation | Top Actuated |
| Actuator Type | Rectangular Button |
| Base Product Number | PTS635 |
| Circuit | SPST-NO |
| Features | - |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 20,000 Cycles |
| Mfr | C&K |
| Operating Force | 130gf |
| Outline | 6.00mm x 3.50mm |
| Product Status | Obsolete |
| Series | PTS635 |
| Switch Function | Off-Mom |
| Switch Travel | - |
| Termination Style | Gull Wing |
