Mallory Sonalert Products Inc.United States

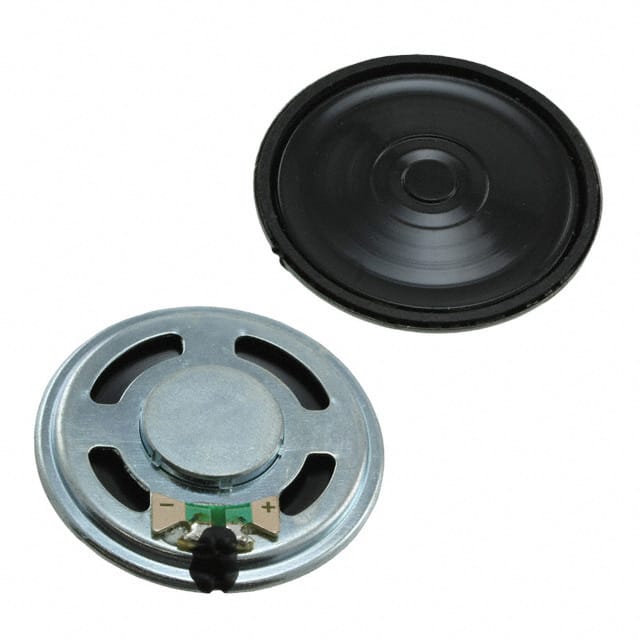

SPEAKER 8OHM 250MW TOP PORT 87DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 500 mW |
| Power - Rated | 250 mW |
| AC and DC characteristics | |
| Frequency Range | 500 Hz ~ 6 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Package | Bulk |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Other | |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite |
| Mfr | Mallory Sonalert Products Inc. |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | PSR |
| Shape | Round |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
