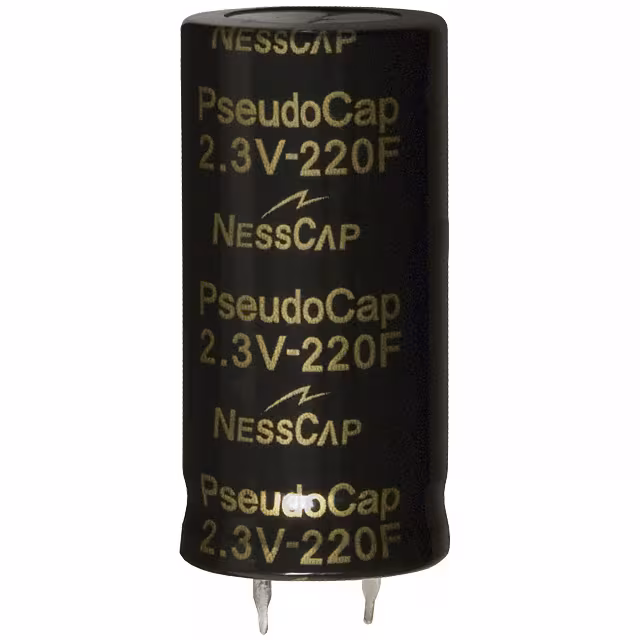

PSHLR-0220C0-002R3
Maxwell Technologies Korea Co., Ltd.South Korea

PSHLR-0220C0-002R3

ObsoleteElectric Double Layer Capacitors (EDLC), Supercapacitors

CAP 220F -10% +20% 2.3V T/H

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Rated2.3 V
Environment and package
Height - Seated (Max)1.850" (47.00mm)
Lifetime @ Temp.87600 Hrs @ 25°C
Mounting TypeThrough Hole
Operating Temperature-25°C~60°C
PackageBulk
Package / CaseRadial, Can - Snap-In
Size / Dimension0.866" Dia (22.00mm)
Other
Capacitance220 F
ESR (Equivalent Series Resistance)15mOhm @ 1kHz
Lead Spacing0.394" (10.00mm)
MfrMaxwell Technologies Korea Co., Ltd.
Product StatusObsolete
SeriesPSHLR
TerminationPC Pins
Tolerance-10%, +20%

Documents

No documents are linked to this part yet.
