MEAN WELL USA Inc.Taiwan, China

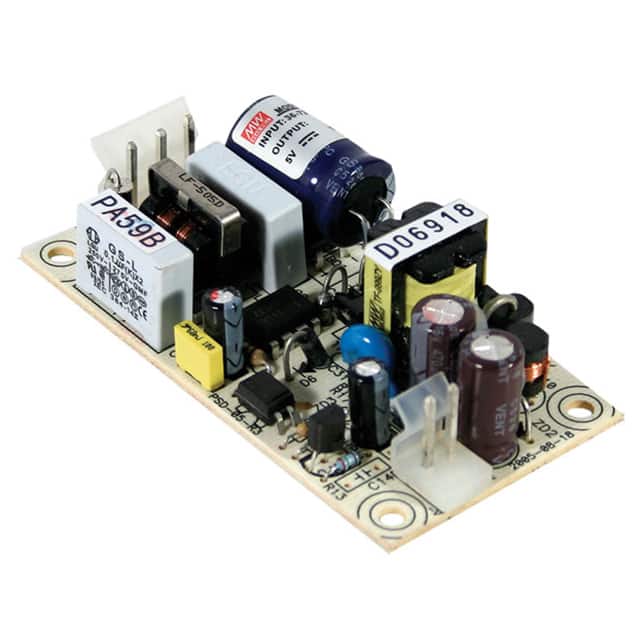

DC/DC CONVERTER 5V 5W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage36 ~ 72 V
Output voltage5 V
Output current1 AMax
Power5 WMax
| Power | |
|---|---|
| Current - Output (Max) | 1A |
| Power (Watts) | 5W |
| Voltage - Input (Max) | 72V |
| Voltage - Input (Min) | 36V |
| Voltage - Isolation | 2 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C~60°C(WithDerating) |
| Package | Box |
| Size / Dimension | 2.95" L x 1.57" W x 0.79" H (75.0mm x 40.0mm x 20.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Efficiency | 75% |
| Mfr | MEAN WELL USA Inc. |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | PSD-05 (5W) |
| Type | Open Frame |
