Phihong USATaiwan, China

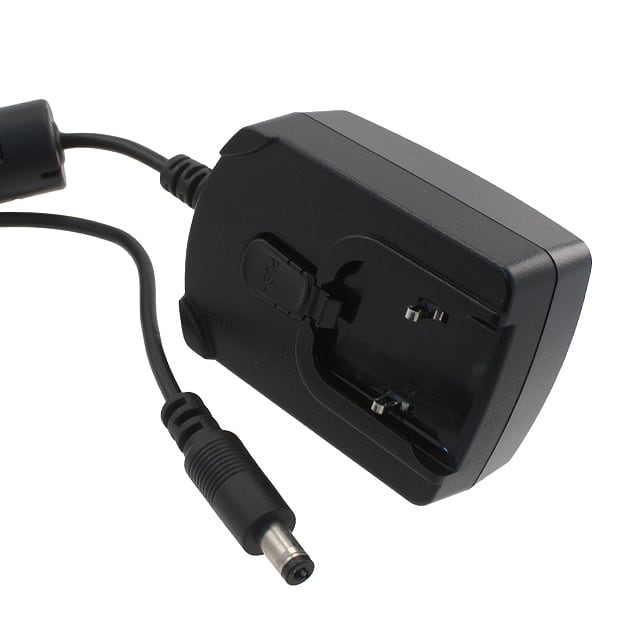

AC/DC WALL MNT ADAPTER 7.5V 15W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage7.5 V
Output current2 AMax
Power15 WMax
| Power | |
|---|---|
| Current - Output (Max) | 2A |
| No Load Power Consumption | 300mW (Max) |
| Power (Watts) | 15 W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 7.5V |
| Environment and package | |
| Operating Temperature | 0°C~40°C |
| Package | Box |
| Size / Dimension | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus, TUVgs |
| Cord Length | 59" (1.50m) |
| Efficiency | Level V |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| Mfr | Phihong USA |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm |
| Polarization | Positive Center |
| Product Status | Obsolete |
| Region Utilized | International |
| Series | PSA15R (15W) |
| Weight | 0.333 lb (151.05 g) |
