Phihong USATaiwan, China

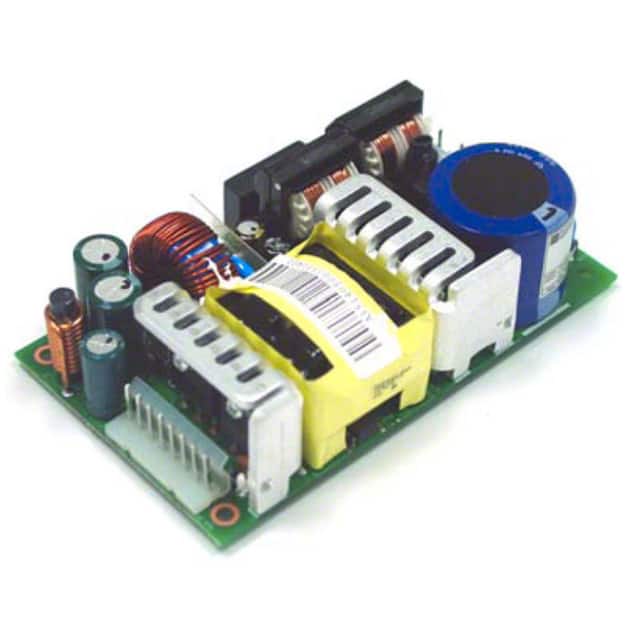

AC/DC CONVERTER 24V 80W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage24 V
Output current5 AMax
Power80 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 5 A |
| Power (Watts) | 80W (120W Forced Air) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~50°C |
| Package | Bulk |
| Size / Dimension | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, TUV |
| Efficiency | 75% |
| Features | Universal Input |
| Mfr | Phihong USA |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | PSA120 (120W) |
| Type | Open Frame |
