Phihong USATaiwan, China

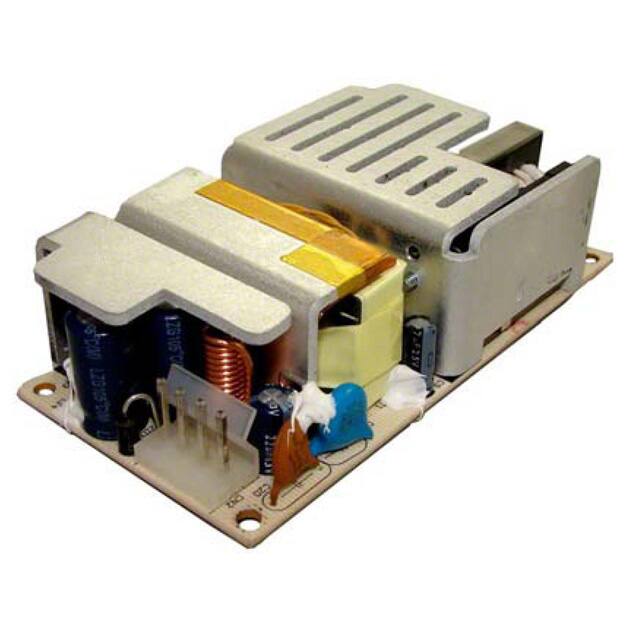

AC/DC CONVERTER 24V 45W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage24 V
Output current2.71 AMax
Power45 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 2.71 A |
| Power (Watts) | 45W (60W Forced Air) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~50°C |
| Package | Box |
| Size / Dimension | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.6mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CE, cURus |
| Efficiency | Level VI |
| Features | Universal Input |
| Mfr | Phihong USA |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | PSA065M (65W) |
| Type | Open Frame |
