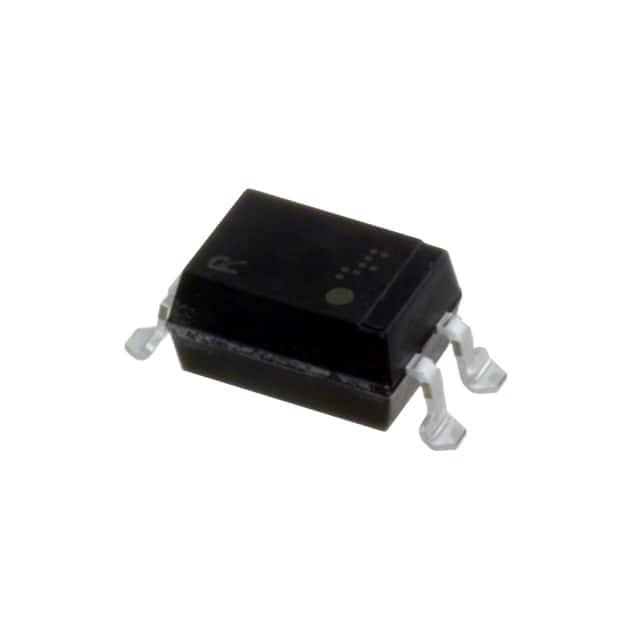

OPTOISOLATOR 5KV TRANS 4SMD
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage5 kV
Output typeTransistor
Current transfer ratio80 %5mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 80 mA |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 240% @ 5mA |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.17V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 80V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~100°C |
| Package | Tube |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Other | |
| Base Product Number | PS2501 |
| Input Type | DC |
| Mfr | Renesas Electronics America Inc |
| Output Type | Transistor |
| Product Status | Active |
| Series | NEPOC |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 300mV |
