CELUnited States

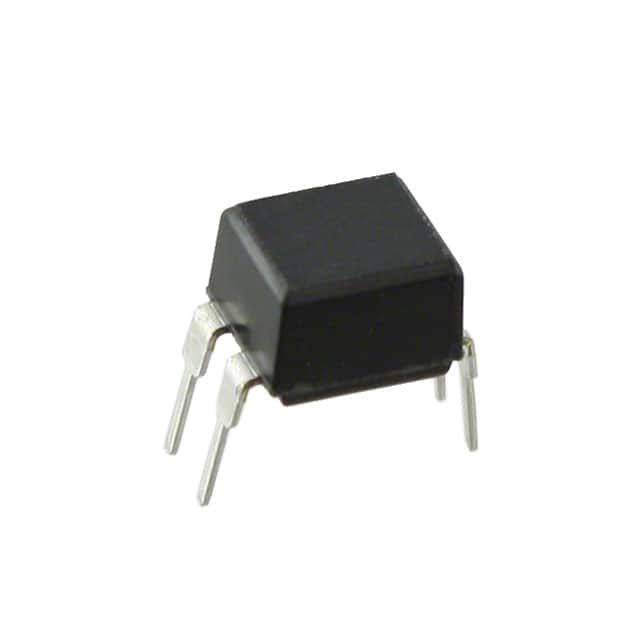

OPTOISOLATOR 5KV TRANS 4DIP
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage5 kV
Output typeTransistor
Current transfer ratio50 %5mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 30 mA |
| Current - Output / Channel | 30mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.17V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 70V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~100°C |
| Package | Tube |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Other | |
| Base Product Number | PS2501 |
| Input Type | DC |
| Mfr | CEL |
| Output Type | Transistor |
| Product Status | Discontinued at Digi-Key |
| Series | NEPOC |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 300mV |
