MEAN WELL USA Inc.Taiwan, China

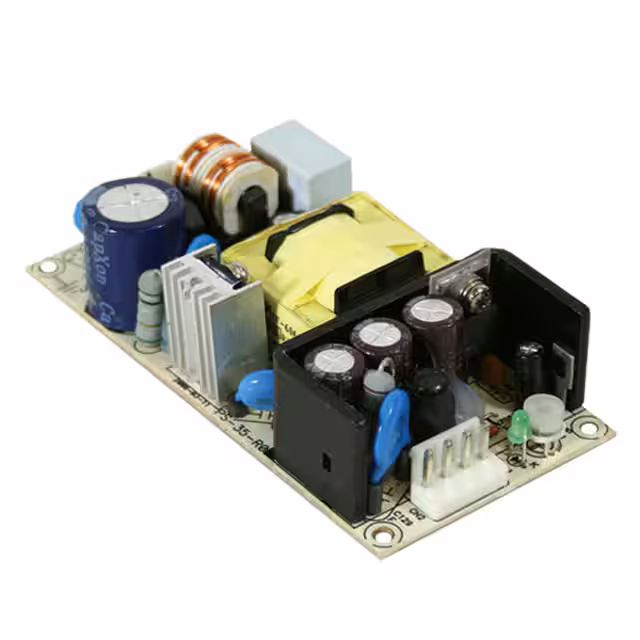

AC/DC CONVERTER 24V 36W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage24 V
Output current1.5 AMax
Power36 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 1.5 A |
| Power (Watts) | 36W |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~65°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.00" L x 2.00" W x 0.94" H (101.6mm x 50.8mm x 24.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Efficiency | 85% |
| Features | Adjustable Output, Universal Input |
| Mfr | MEAN WELL USA Inc. |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | PS-35 (35W) |
| Type | Open Frame |
