Micro Commercial CoUnited States

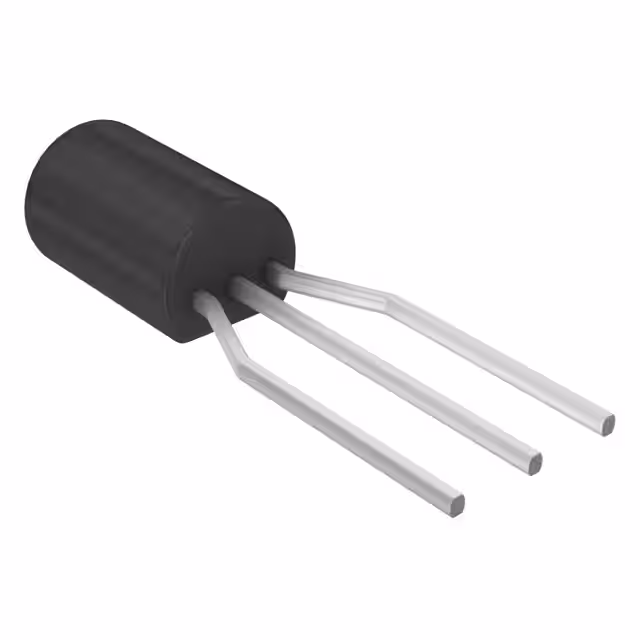

TRANS NPN 40V 0.6A TO92
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage40 V
Collector current600 mAMax
DC current gain100150mA
Power625 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 10nA |
| Current - Collector (Ic) (Max) | 600 mA |
| Power - Max | 625 mW |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | 300MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92 |
| Other | |
| Base Product Number | PN2222 |
| Mfr | Micro Commercial Co |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
