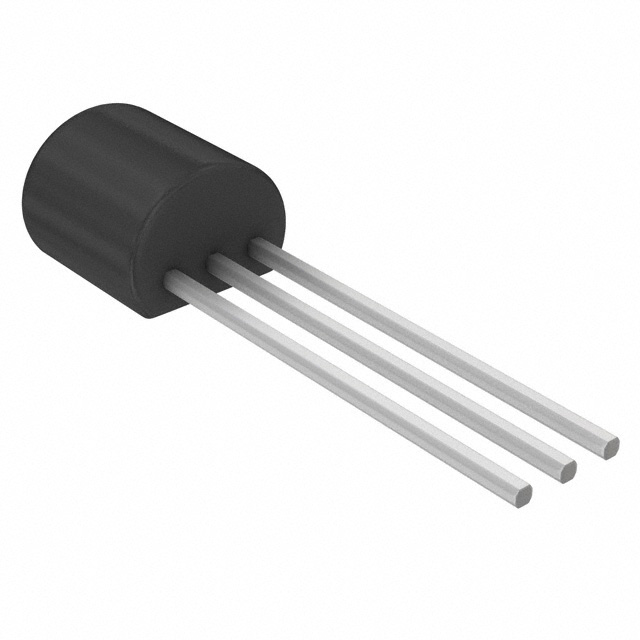

TRANS NPN 45V 0.5A TO92-3
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage45 V
Collector current500 mAMax
DC current gain30010mA
Power625 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 50nA |
| Current - Collector (Ic) (Max) | 500 mA |
| Power - Max | 625 mW |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 10mA, 1V |
| Frequency - Transition | 250MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| Other | |
| Base Product Number | PN100 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 20mA, 200mA |
