Mallory Sonalert Products Inc.United States

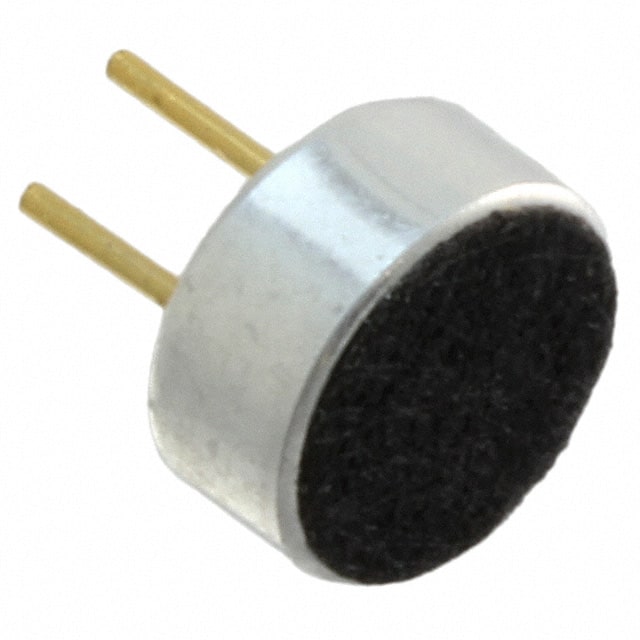

MIC MAG ANLG OMNI -47DB 4.5MM D
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 500 µA |
| Voltage Range | 1 V ~ 10 V |
| Voltage - Rated | 2 V |
| AC and DC characteristics | |
| Frequency Range | 20 Hz ~ 16 kHz |
| Impedance | 2.2 kOhms |
| Environment and package | |
| Height (Max) | 0.126" (3.20mm) |
| Package | Bulk |
| Size / Dimension | 0.177" Dia (4.50mm) |
| Other | |
| Direction | Omnidirectional |
| Mfr | Mallory Sonalert Products Inc. |
| Output Type | Analog |
| Port Location | Top |
| Product Status | Obsolete |
| Sensitivity | -47dB ±3dB @ 94dB SPL |
| Series | PMO |
| Shape | Circular |
| S/N Ratio | 58dB |
| Termination | PC Pins |
| Type | Magnetic |
