Nexperia USA Inc.Netherlands

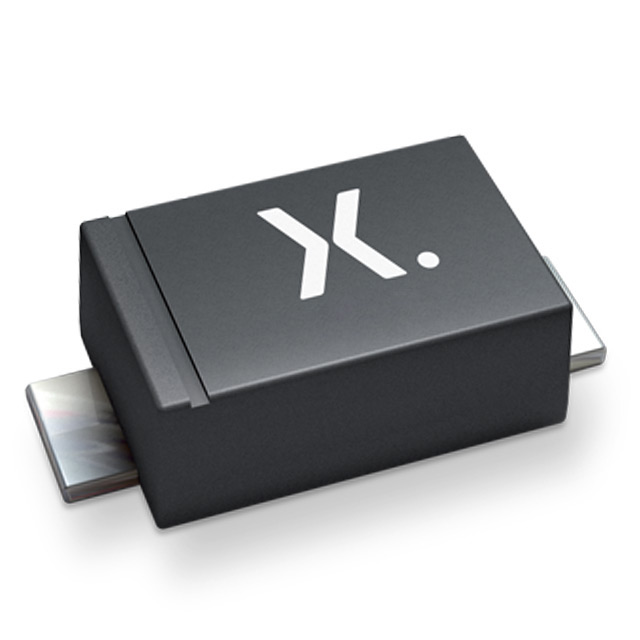

DIODE SCHOTTKY 60V 2A SOD123W
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage60 V
Average rectified current2 A
Forward voltage530 mVMax · 2 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 2A |
| Current - Reverse Leakage @ Vr | 150 µA @ 60 V |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 2 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C (Max) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | SOD-123W |
| Supplier Device Package | SOD-123W |
| Other | |
| Base Product Number | PMEG6020 |
| Capacitance @ Vr, F | 240pF @ 1V, 1MHz |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
