Flex Power ModulesSweden

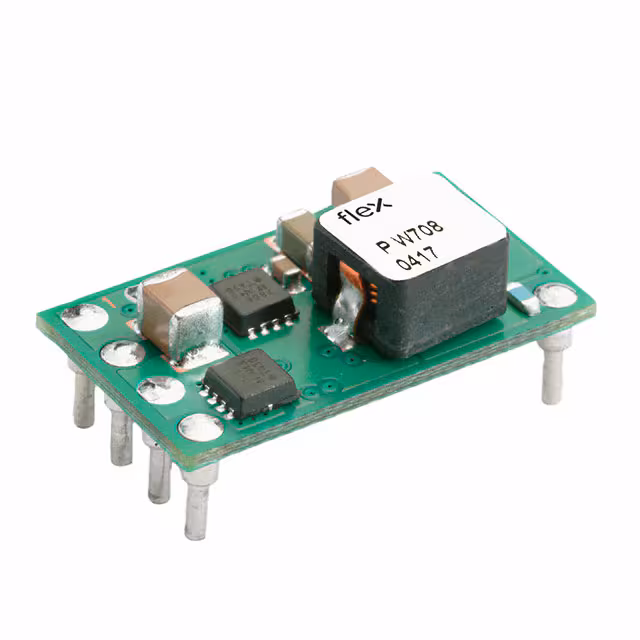

DC DC CONVERTER 0.9-3.6V 11W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage3 ~ 5.5 V
Output voltage900 mV ~ 3.6 V
Output current3 AMax
Power11 WMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 3A |
| Power (Watts) | 11 W |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 3V |
| Voltage - Output 1 | 0.9 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C(WithDerating) |
| Package | Tray |
| Package / Case | 6-DIP Module |
| Size / Dimension | 0.74" L x 0.49" W x 0.33" H (18.9mm x 12.6mm x 8.5mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CSA, IEC, TUV, UL |
| Control Features | - |
| Efficiency | 93.2% |
| Features | Adjustable Output, Remote On/Off |
| Mfr | Flex Power Modules |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | PMD 4000 (10.8W) |
| Standard Number | 62368-1 |
| Type | Non-Isolated PoL Module |
