PanasonicJapan

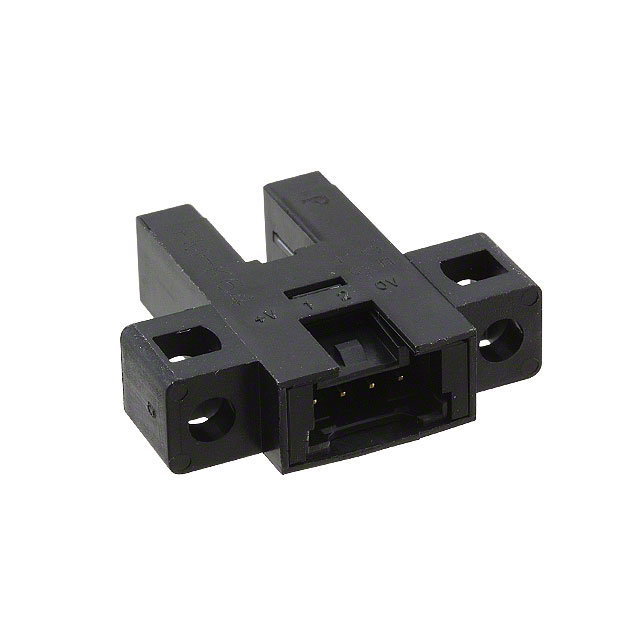

SENSOR OPT SLOT NPN MODULE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 15 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Package / Case | Module, Connector, Slot Type |
| Other | |
| Manufacturer | Panasonic Industrial Automation Sales |
| Output Configuration | NPN - Dark-ON/Light-ON - Selectable |
| Packaging | Bulk |
| Part Status | Obsolete |
| Response Time | 20µs |
| Sensing Distance | 0.197" (5mm) |
| Sensing Method | Through-Beam |
| Series | PM-64 |
| Type | Unamplified |
