Peerless by TymphanyUnited States

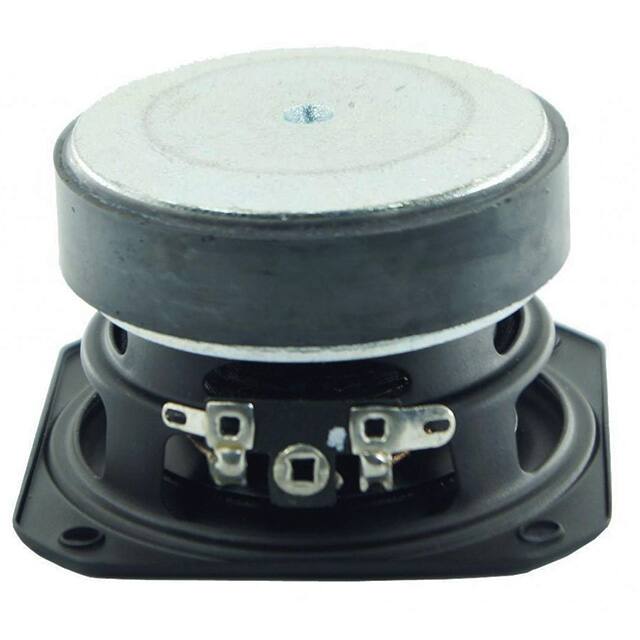

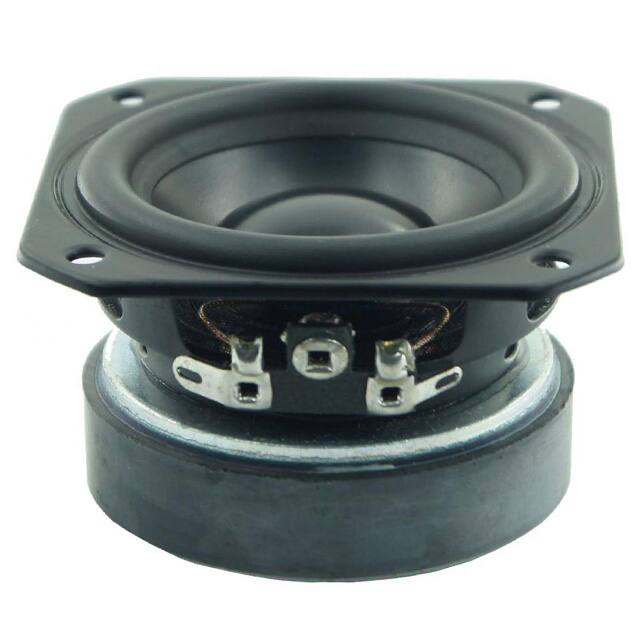

SPEAKER 4OHM 25W TOP PORT 82.2DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | 25 W |
| AC and DC characteristics | |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 112.07Hz |
| Impedance | 4.26 Ohms |
| Environment and package | |
| Height - Seated (Max) | 1.819" (46.20mm) |
| Package | Bulk |
| Size / Dimension | 2.717" L x 2.717" W (69.00mm x 69.00mm) |
| Other | |
| Efficiency - dBA | 82.20 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Ingress Protection | - |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Mfr | Peerless by Tymphany |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | PLS |
| Shape | Round, Square Frame |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
Documents
No documents are linked to this part yet.
