Vicor CorporationUnited States

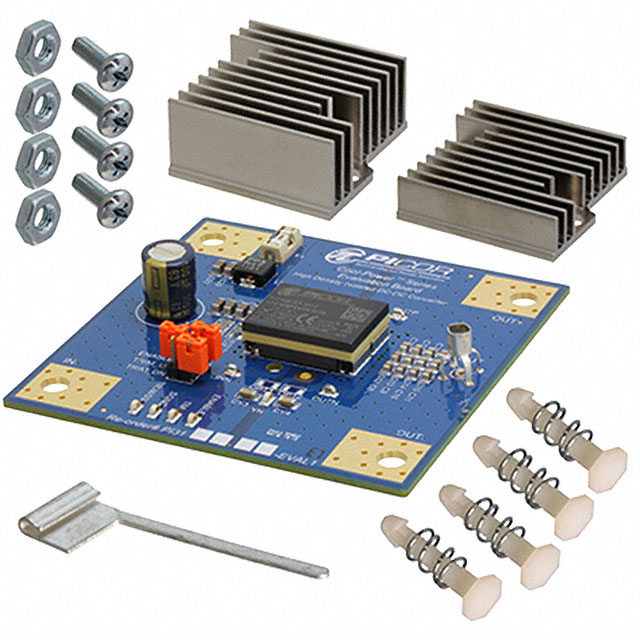

PI3109-01-EVAL1
DC/DC & AC/DC (Off-Line) SMPS Evaluation BoardsEVAL BOARD PI3109-01-HVIZ
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 10A |
| Power - Output | 50 W |
| Voltage - Input | 18V ~ 36V |
| Voltage - Output | 5V |
| AC and DC characteristics | |
| Frequency - Switching | 900kHz |
| Other | |
| Base Product Number | PI3109 |
| Board Type | Fully Populated |
| Main Purpose | DC/DC, Step Down |
| Manufacturer | Vicor Corporation |
| Note | - |
| Outputs and Type | 1, Isolated |
| Packaging | Box |
| Part Status | Obsolete |
| Regulator Topology | Buck |
| Series | - |
| Supplied Contents | Board(s) |
| Utilized IC / Part | PI3109-01 |
Documents
No documents are linked to this part yet.
