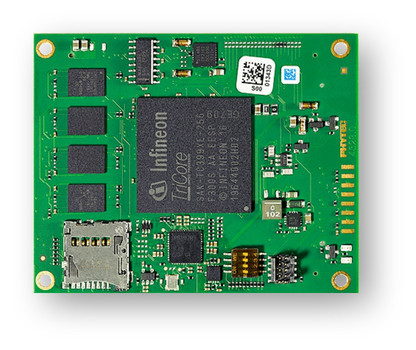

PHYCORE-TC399

Active

Der TC399, das Flaggschiff der TriCore Aurix-Familie von Infineon, ist prädestiniert für sicherheitskritische Anforderungen in Industrie und Robotik.

All alternatives

Power
Power supply	3.3 V
AC and DC characteristics
Frequency	up to 6x 300 MHz
Environment and package
Dimensions	71 mm x 57 mm
Temperature range	-40 °C to +85 °C
Other
A/D	yes
Architecture	TriCore AURIX 2nd Generation, DSP
Bit width	32 bit
CAN	4x CAN FD

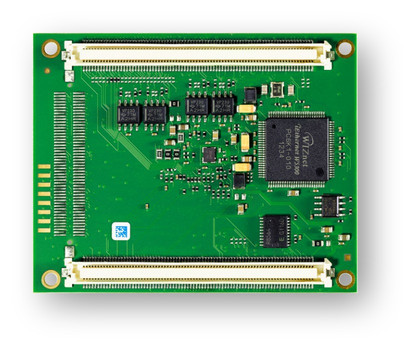

Connectors	Molex 0.635 mm pitch (2x 160 pins, optional 1x 100 pins)
EEPROM	up to 32 kB (SPI)
Ethernet	1x 10/100/1000 Mbit/s
Flash (on chip)	up to 16 MB
FlexRay	2x
I²C	2x
Operating system	CoDeSys, CMX-RTX, tresos with ProOSEK and ProOSEK / time, OSE Epsilon, RTA-OS, EUROS, ERIKA Enterprise, E4Coder, PXROS-HR, µC/OS-II, osCAN OSEK operating system (all external)
Processor	TC39x (LFBGA-516)
PWM	yes
RTC	Battery buffered
Security	Security Module (HSM)
SPI	2x
SRAM	up to 8 MB (10 ns)
UART	2x
