PHYCORE-TC399-KIT

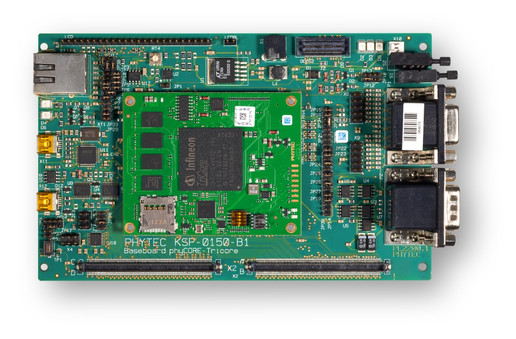

ActiveDas TriCore Aurix Development Kit enthält ein Entwicklungsboard mit TC399 Modul, Ethernet Mapper Board, Kabel, Netzteil und Inbetriebnahmegarantie.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power supply | 5 V |
| AC and DC characteristics | |
| Frequency | up to 6x 300 MHz |
| Environment and package | |
| Dimensions | 160 mm x 100 mm |
| SOM Mounting | Connector insertion |
| Temperature range | -40°C to +85°C |
| Other | |
| Additional | Expansion Bus, Pin Header, GND Connector |
| Architecture | Aurix 2nd Gen. Controller |
| Betriebssystem | CoDeSys, CMX-RTX, tresos with ProOSEK and ProOSEK / time, OSE Epsilon, RTA-OS, EUROS, ERIKA Enterprise, E4Coder, PXROS-HR, µC/OS-II, osCAN OSEK operating system (all external) |
| CAN | 2x |
| Display | LCD Connector |
| EEPROM | 8 kB (SPI) |
| Ethernet | 1x 10/100/1000 Mbit/s |
| Flash on-chip | 16 MB |
| Module | phyCORE-TC399 |
| Processor | TC390XP (LFGBA516) |
| RTC | Battery buffered |
| Serial | 2x RS232 |
| SRAM | 5 MB |
| USB | 1x on-board USB Wiggler connector, 1x USB Mini connector for module USB to UART Bridge |
| User Control Elements | Boot Button, Reset Button |
